Mobile substation for temporary power supply up to 36 KV “Mobile Cabin”

Mobile substation with or without aisle space up to 1000 KVA to 36 KV

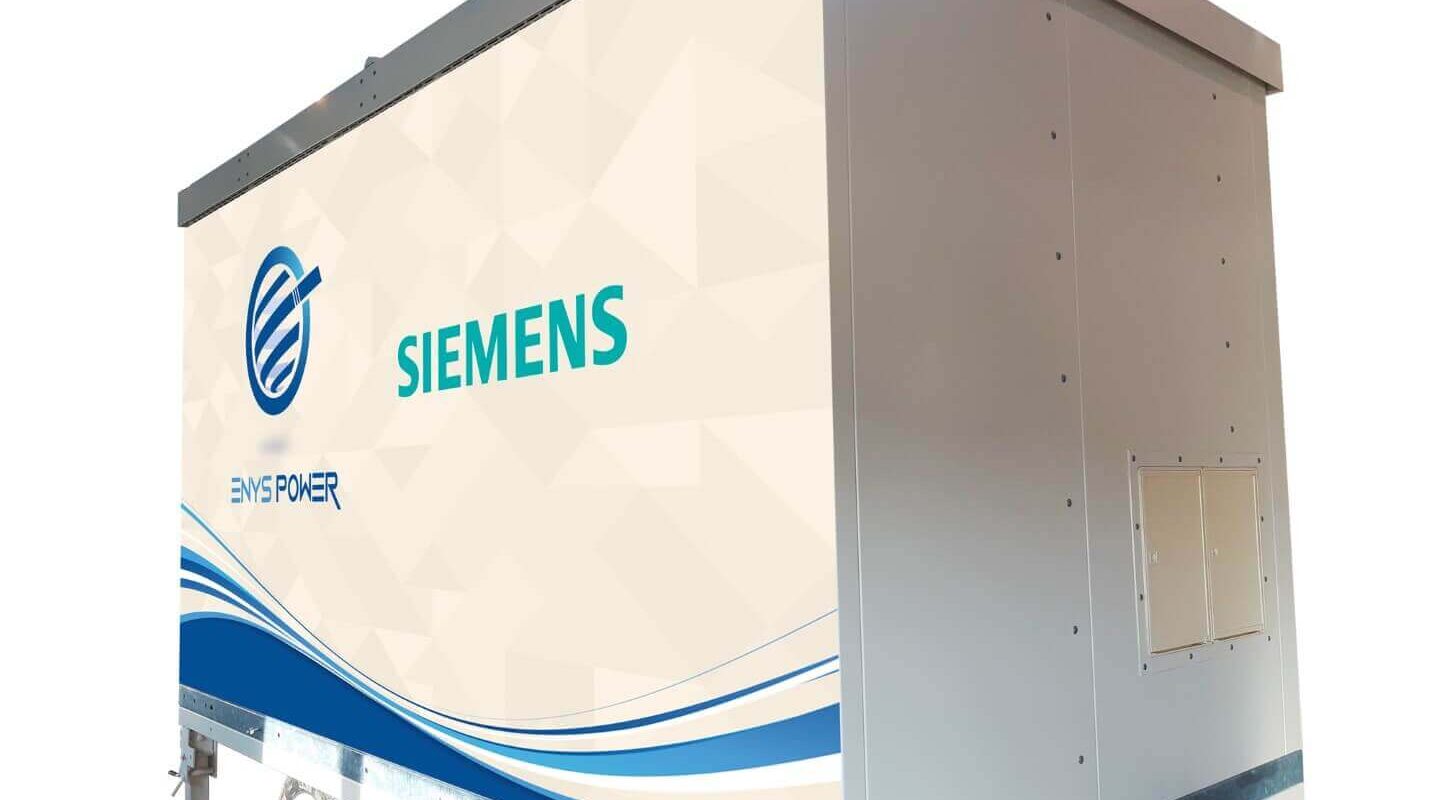

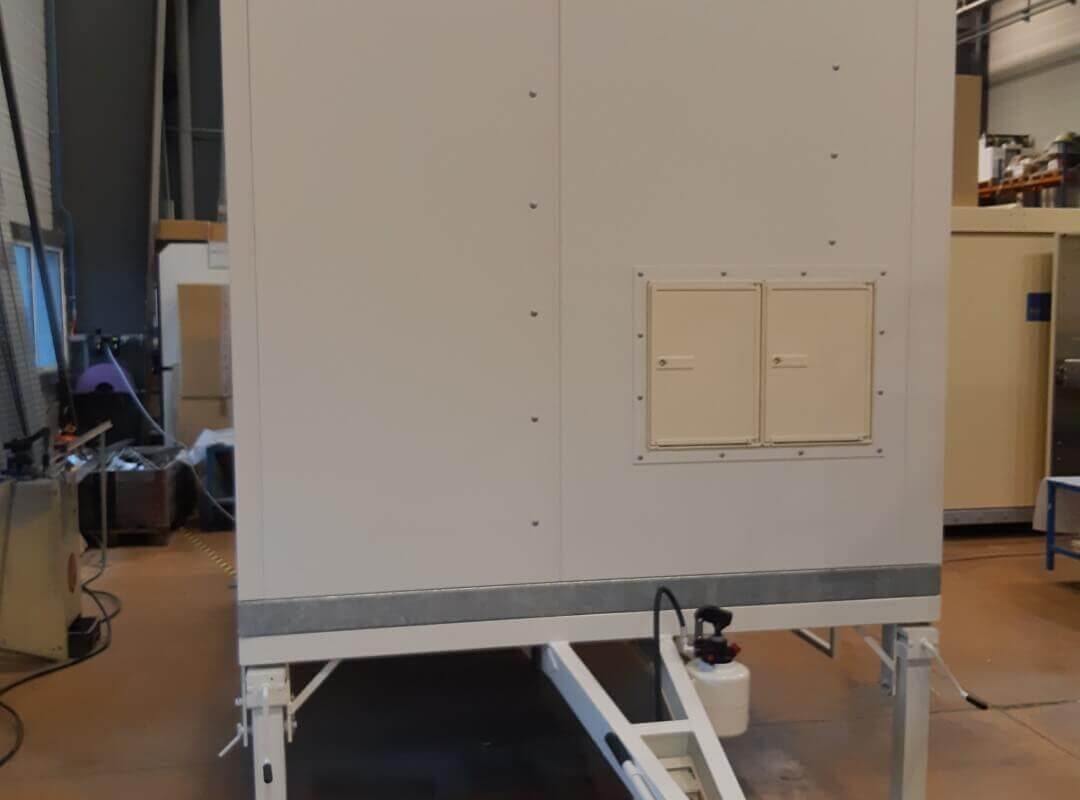

  • Poste de transformation mobile HALEY
  • Poste de transformation mobile HALEY
  • Poste de transformation mobile HALEY
  • Poste de transformation mobile HALEY
  • Poste de transformation mobile HALEY
  • Poste de transformation mobile HALEY

Technical description

This mobile substation is intended for temporary power supply during major electrification works or repair of MV installations.
It consists of an aluminium enclosure attached to a trailer for optimal mobility.

The HALEY mobile substation can integrate:

  • One MV/LV transformer up to 1000 KVA to 36 kV IEC 60076 and its oil retention tank
  • One state-of-the-art, compact, maintenance-free and hermetically tight SIEMENS MV switchgear type 8DJH 24 kV – 36 kV 630 A in compliance with IEC 62271
  • One IP2X low voltage panel board or one TIPI panel for up to 8 LV outgoing feeders + 1 temporary
  • One S20 control box for public lighting
  • One Opale wall-mounted box for substation utilities and lighting
  • One Bardin FLAIR 279 type relay with external indicator

Key points mobile substation for temporary power supply up to 36 KV

  • “Plug and Power” Mounted – Wired
  • Facilitates work and maintenance on the power grid
  • Optimal mobility up to 4.5 T
  • Trailer delivered with 1 spare wheel
  • Mobile cabin approved for SENELEC (Senegal) and CI-ENERGIES (Ivory Coast) grids

Logistical information

  • Incoterms: FCA France or CIF seaport
  • Marine equipment required: Open Top Container
  • Origin: France
  • Customs code: 85372091

Read more

Safety standards & certifications

    NFC13-200

    on high voltage electrical installations

    NFC15-100

    on low-voltage electrical installations

    NE EN 62271-202

    on MV/LV prefabricated substations

    ISO9001

    for quality management
