Substations for public distribution up to 36 KV

Substation with or without aisle space up to 1000 KVA to 36 KV C13-200.

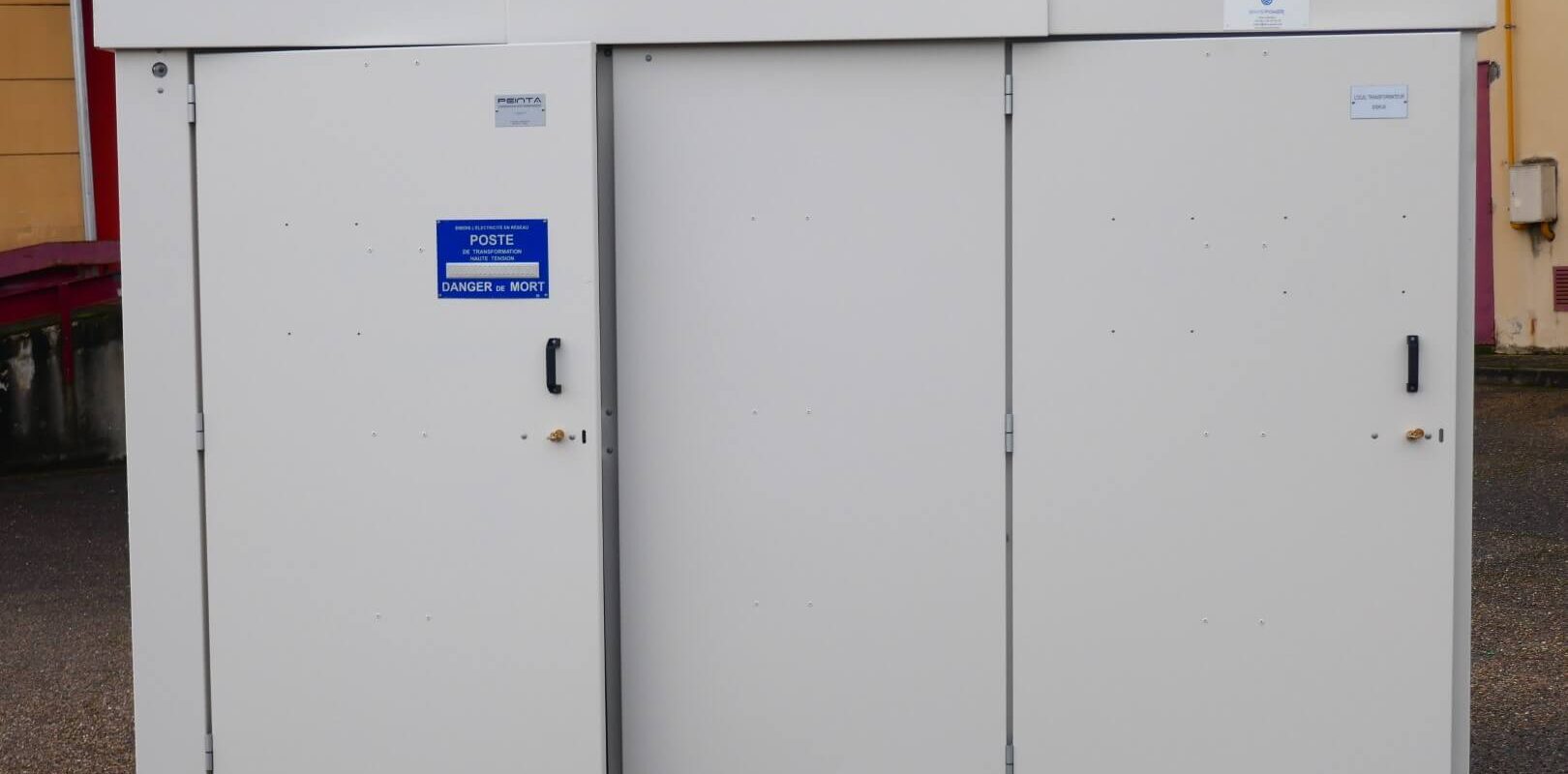

  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Transformateur huile de distribution 630kVA 15kV 20kV 410V
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Transformateur huile de distribution 630kVA 15kV 20kV 410V
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE
  • Poste de transformation POWER LINE

Technical description of substation for public distribution up to 36 KV

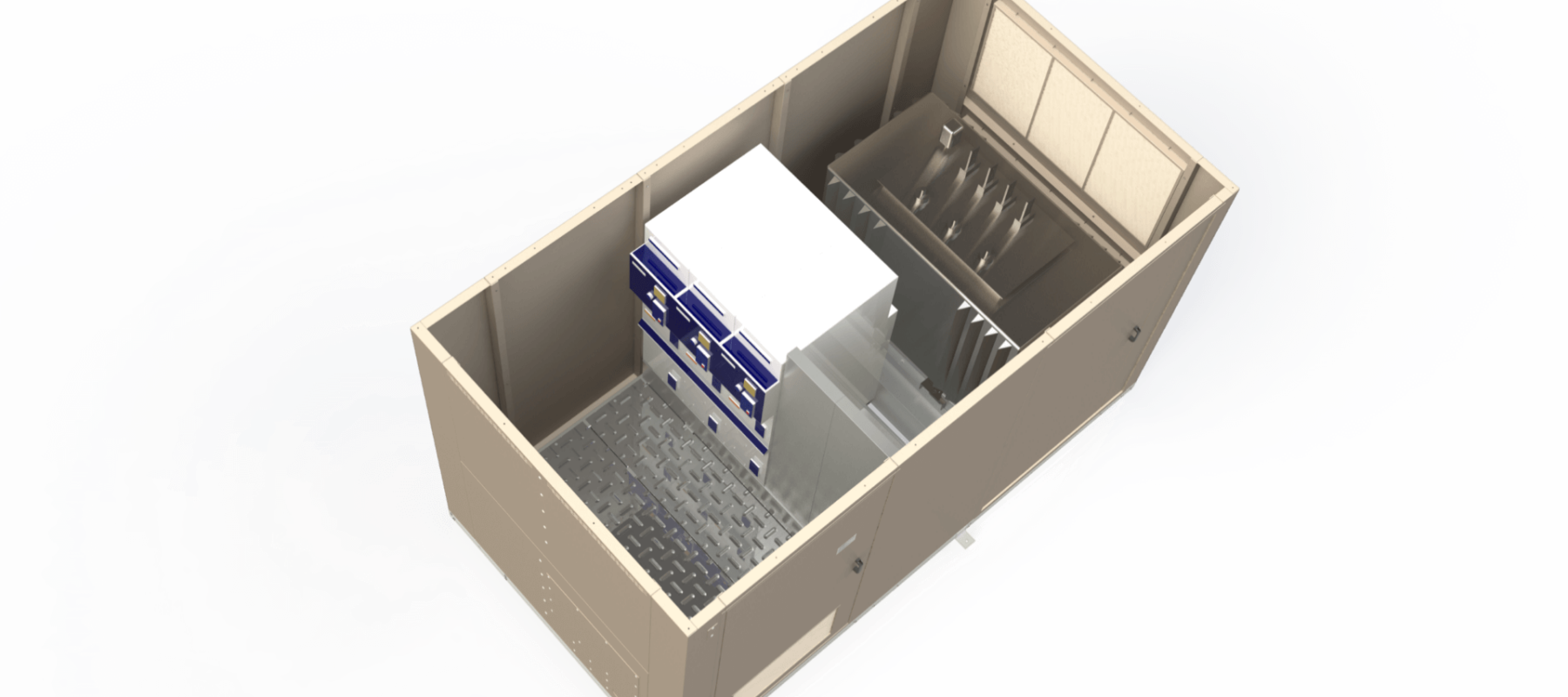

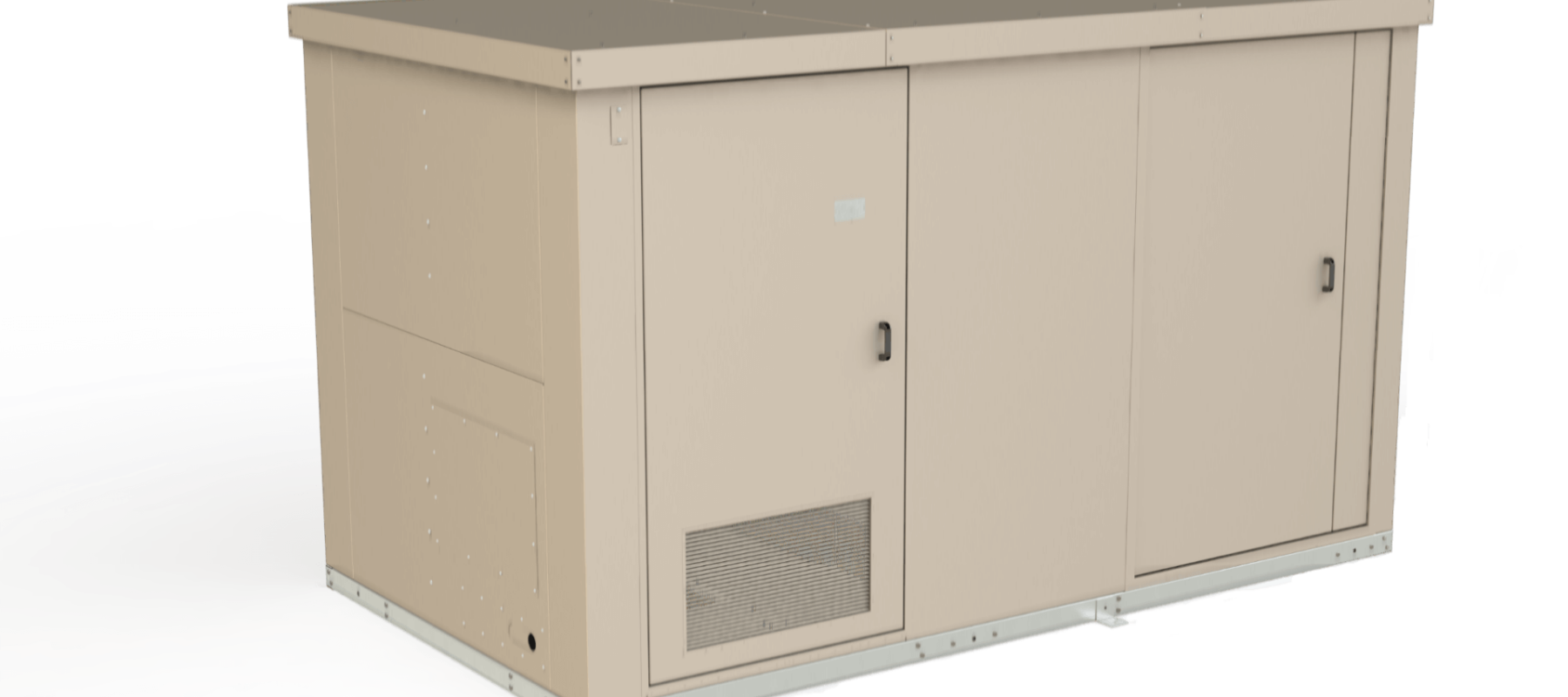

This substation is intended for large electrification projects for secondary distribution in rural and urban areas. It has an aluminium enclosure for easy transport and placement in hard-to-reach areas. The POWER LINE substation can integrate:

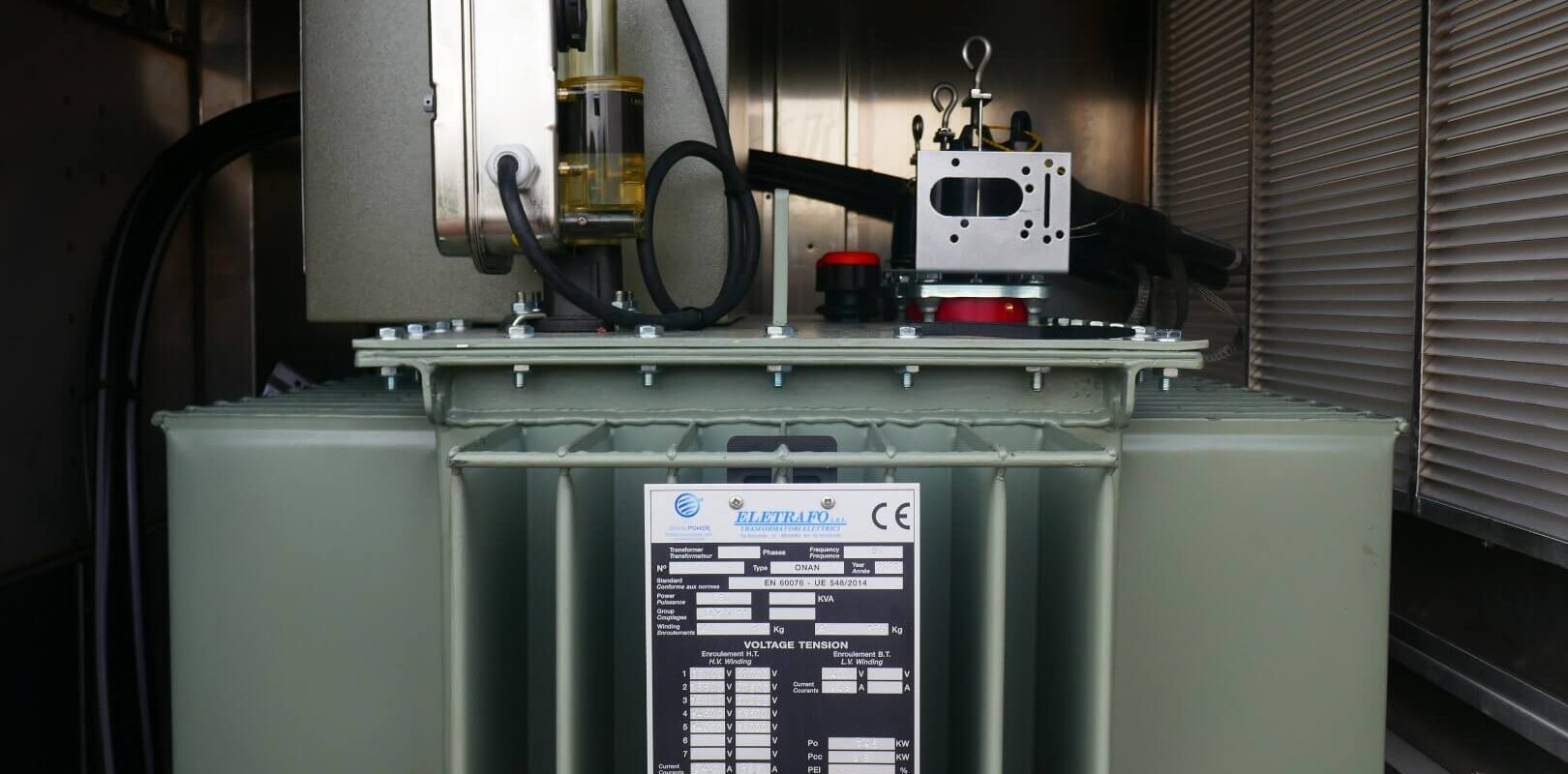

  • One 36 kV IEC 60076 MV/LV transformer up to 1000 KVA and its oil retention tank
  • One state-of-the-art, compact, maintenance-free and hermetically tight SIEMENS MV switchgear type 8DJH 24 kV – 36 kV 630 A in compliance with IEC 62271
  • One IP2X low voltage panel board or one TIPI panel for up to 8 LV outgoing feeders + 1 temporary
  • One S20 control box for public lighting
  • One Opale wall-mounted box for substation utilities and lighting
  • One Bardin FLAIR 279 type relay with external indicator
  • 29 mm² grounding circuit with grounding plate
  • A set of safety accessories up to 36 kV

Key points

  • “Plug and Power” Mounted – Wired

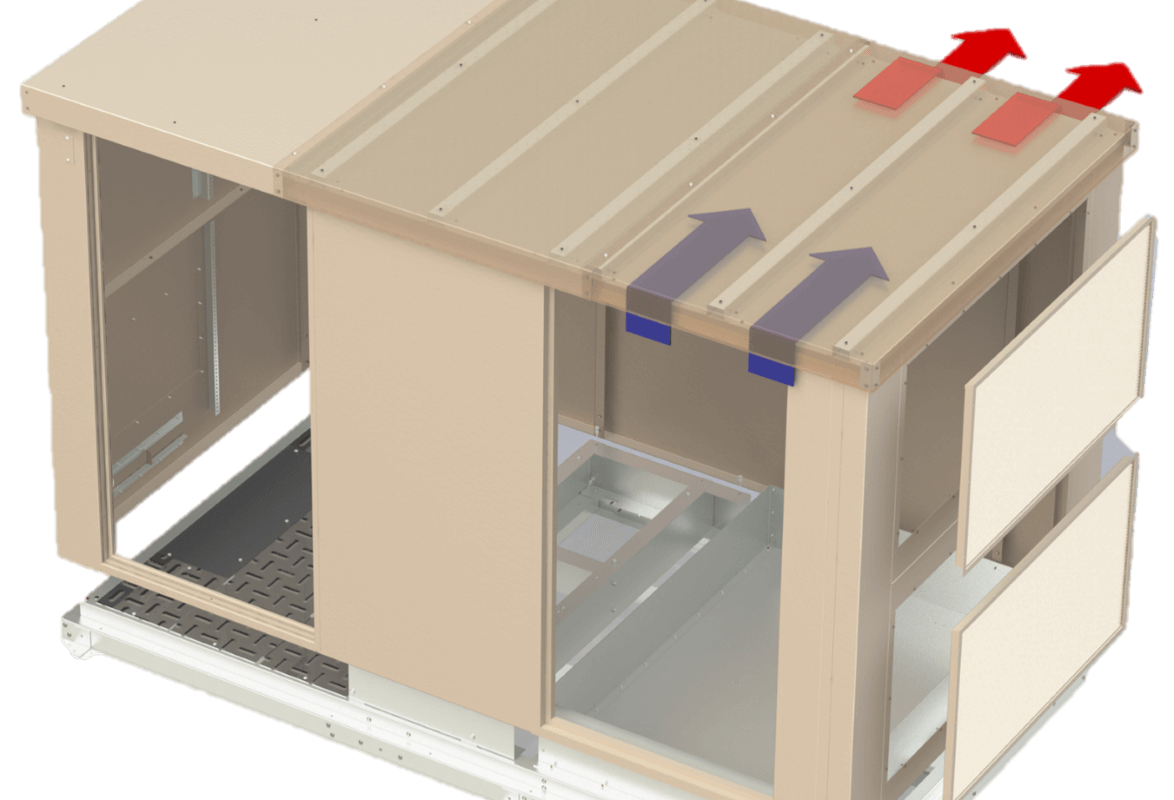

  • Rock wool roof insulation to reduce the effects of the sun
  • Insensitive to the environment
  • Easy to handle up to 4.5 T maximum
  • Delivered with a specific spreader bar
  • Short lead time of 10 to 12 weeks on average

Logistical information

  • Incoterms: FCA France or CIF seaport
  • Marine equipment required: Open Top Container
  • Origin: France
  • Customs code: 85372091

Read more

Safety standards & certifications

    NFC13-200

    on high voltage electrical installations

    NFC15-100

    on low-voltage electrical installations

    NE EN 62271-202

    on MV/LV prefabricated substations

    ISO9001

    for quality management
